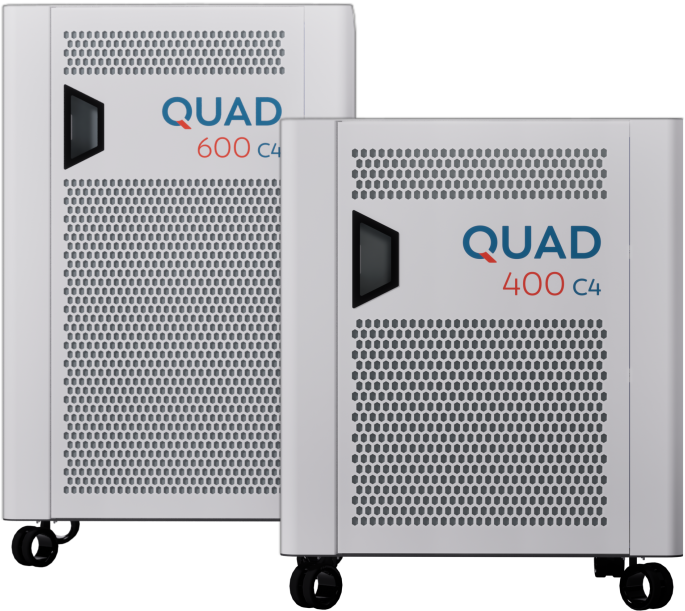

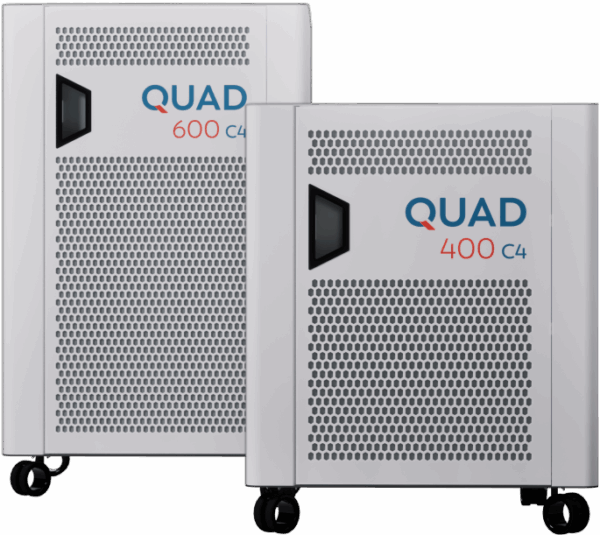

Consoles
Description
QUAD’s consoles are based on the well-proven Cameleon4TM technology and easy-to-use NMR Software SPINit from Nanalysis.
Typical console specifications:
| Amplitude/phase/frequency resolution | 12/16/32 bit |
| Timing resolution/ minimum duration | 12.8 ns / 115.2 ns |
| Spectral width | up to 4.88 MHz |
| Bandwidth | 2.4 MHz |
| Gradient amplifier | 10 A |
| Voltage | 150-264 Vac (1500 W) Frequency 47-63 Hz Single phase |
| Dimensions and weight | 500/600 MHz: 66cm wide, 64cm deep, 110cm tall (including wheels), 100kg |
| Electronic cabinet | 400 MHz: 66cm wide, 64cm deep, 110cm tall (including wheels), 80kg Preamp external |
| Power dissipation | 2 channel system: max 2300 W / 20 A at 230 Vac |
